Audi/VW 1.8T  H-beam con rods,144mm rod length,20mm pin endAudi/VW 1.8T  H-beam con rods,144mm rod length,20mm pin endAudi/VW 1.8T  H-beam con rods,144mm rod length,20mm pin end

Audi/VW 1.8T H-beam con rods,144mm rod length,20mm pin end

  • Competitive Price
  • Forged 4340 Steel
  • Fully CNC machine
  • Professional Team
  • Quality Assurance
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords: 1.8t forged rods
  •           VW 1.8T performance engine connecting rods
  •           Forged VW & Audi 144*20 conrods
  •           Forged 144X20 Rods 1.8T, FSI, Stroker
  •           Types of connecting rod
Brand: Hurricane
Engine: VW/AUDI 1.8T
Part Type: Connecting Rods
Center to Center Length: 144mm/5.670"
Big End Bore Diameter: 50.6mm /1.992"
Big End Width: 24.95mm/0.982"
Small End Bore Diameter: 20mm/0.787"
Small End Width: 24.95mm/0.982"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8 "
Approximate Connecting Rod Weight: 560g/piece
Advertised Horsepower Rating: 750hp
Quantity: Sold as 4pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

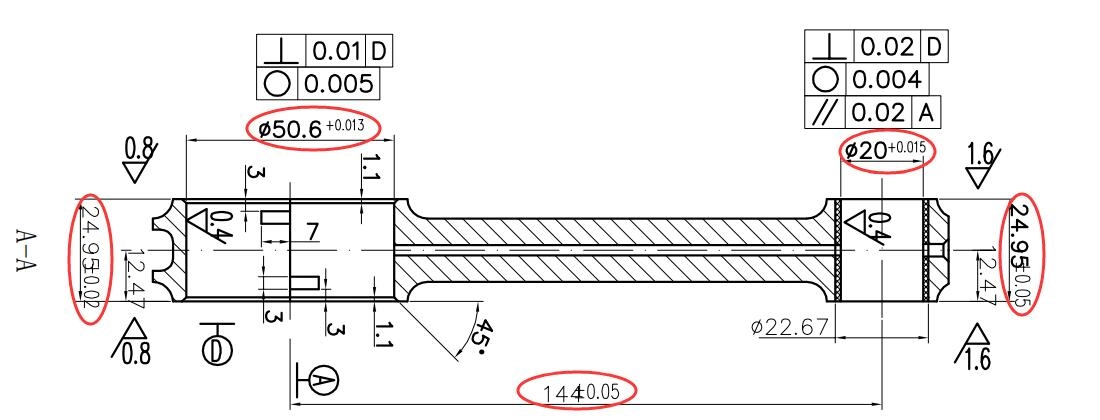

Forged VW & Audi 144*20 conrods Main Dimensions 



VW 1.8T performance engine connecting rods Description & Advantages

Hurricane H-Beam VW/Audi 1.8T connecting rods are made from 1-piece chromoly steel forging to ensure maximum strength and durability. Material using high tensile 4340 steel/40CrNiMoA/EN24,100% CNC machined. Surface looks very smooth and beautiful because of the polish and shot-peen process. We offer a huge connecting rod line to Audi/VW engines to all over the world.

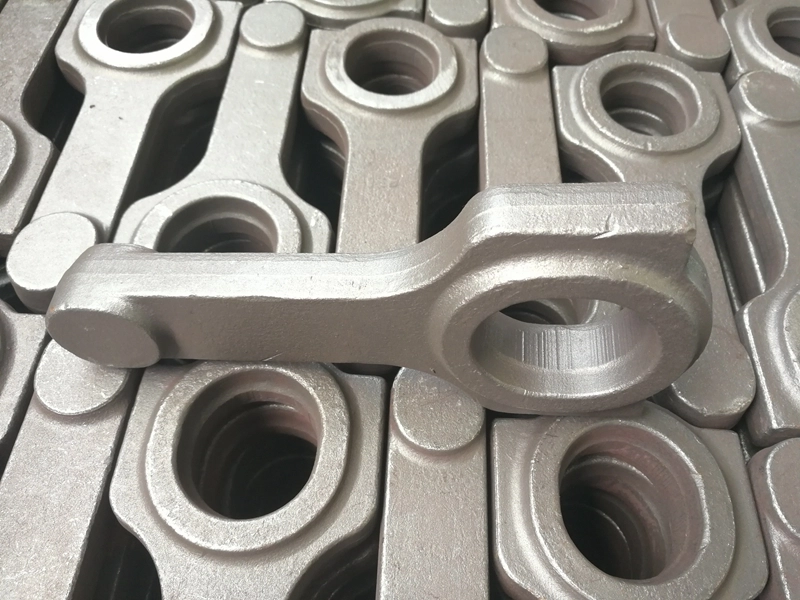

1. 1-piece chromoly steel forging



2. 100% CNC Mahine, polished and shot-peened treatment. The article you could explore, "Hurricane High Performance connecting rods - Process of machining rods".

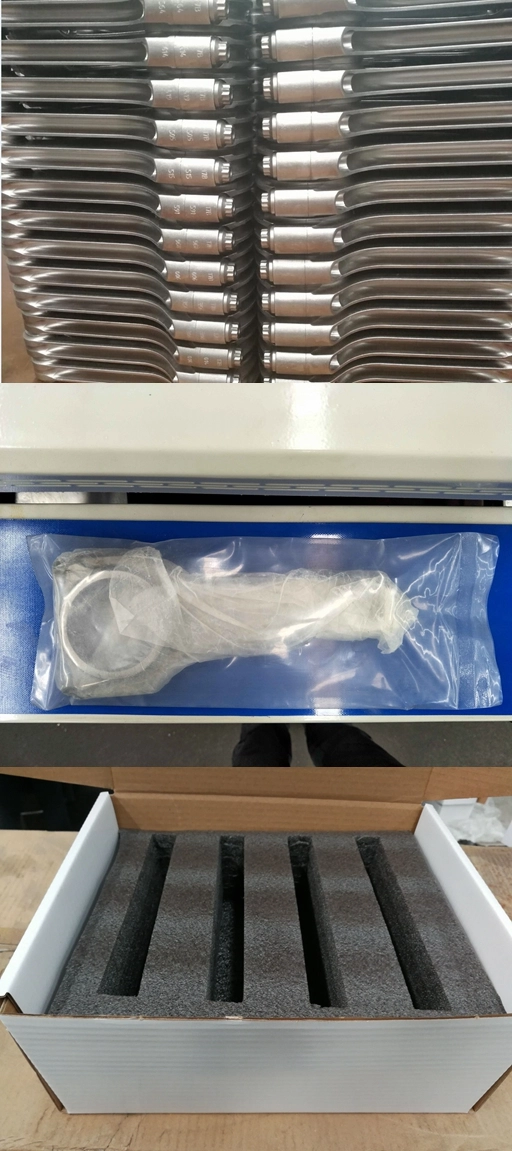

3. Newest package protect rods, no matter what kind of shipping way.



Put forged connecting rod into yourself racing car .
