CHRYSLER 5.9L/360 MOPAR SMALL BLOCK LA H-beam Connecting RodsCHRYSLER 5.9L/360 MOPAR SMALL BLOCK LA H-beam Connecting RodsCHRYSLER 5.9L/360 MOPAR SMALL BLOCK LA H-beam Connecting Rods

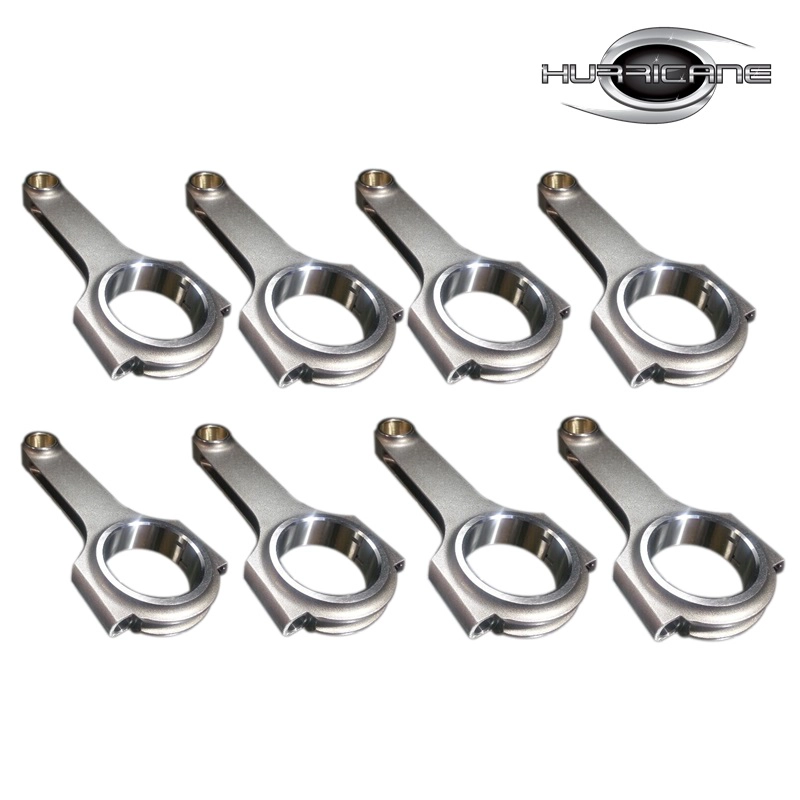

CHRYSLER 5.9L/360 MOPAR SMALL BLOCK LA H-beam Connecting Rods

  • Competitive Price
  • Forged 4340 Steel
  • Quality Assurance
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: CHRYSLER 5.9L/360 5.6L/340 Mopar Small Block
Part Type: Connecting Rods
Center to Center Length: 155.52mm/6.123"
Big End Bore Diameter: 53.98mm/2.125"
Big End Width: 23.5mm/0.925"
Small End Bore Diameter: 24.99mm /0.984"
Small End Width: 23.5mm/0.984"
Beam Style: H-beam
Connecting Rod Bolt Diameter:7/16"
Approximate Connecting Rod Weight: 573g/piece
Advertised Horsepower Rating: 900hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished

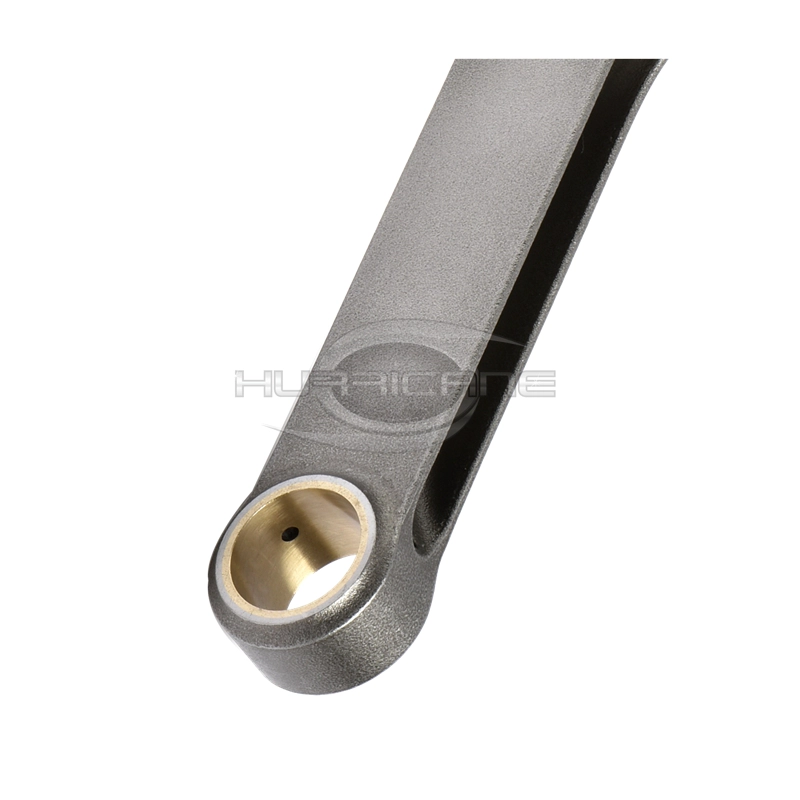

Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

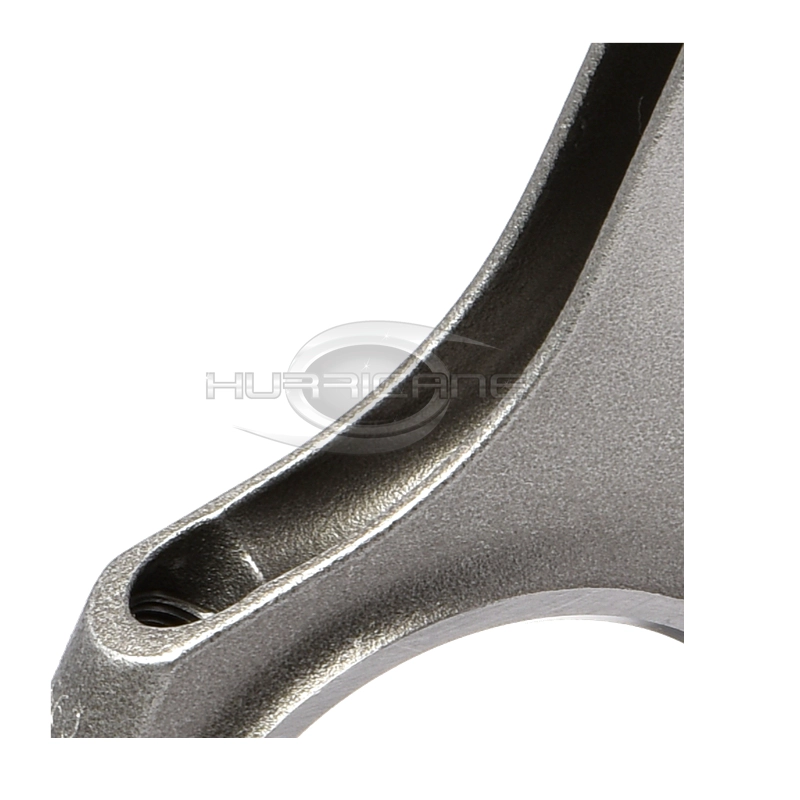

Hurricane Forged 4340 steel connecting rod H-Beam Rods

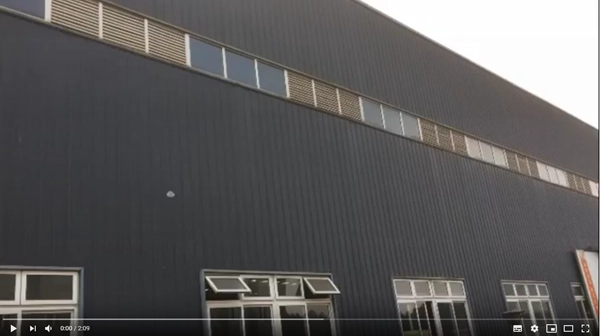

Forged and machined from SAE 4340 steel , utilizes ARP 2000 cap screw style bolts with alignment sleeves for precise cap location. Per set packaged with 8 pcs/set , weight matched to ± 1g. Sizing is performed on precision CNC equipment, welcome to visit more details through our company video



Hurricane produce connecting rods for all kinds of Chrysler applications , such asChrysler Mopar 440 ,Chrysler 7.0L/426 7.2L/440 Mopar big block RB , Chrysler 5.9L/360 5.6L/340 Mopar Small Block , Chrysler RB 426 440 HEMI ...If you can not find the ones which you are looking for , please feel free send massage to us online or mail to us directly . 

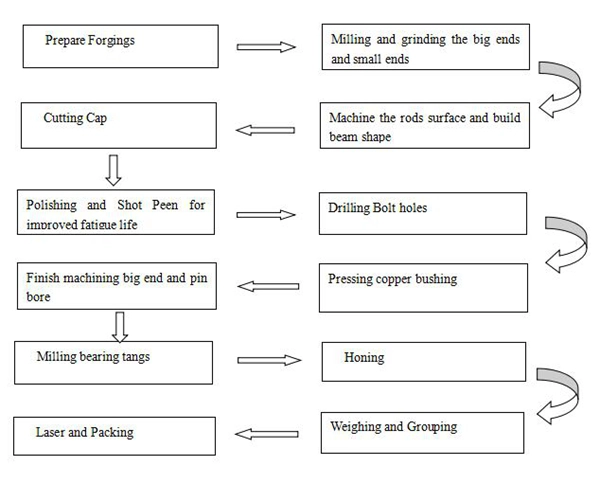

Hurricane Connecting Rods Production Process



Hurricane Connecting Rods Packing Picture 
