Hurricane H-Beam Rods Toyota Supra MK4 2JZGTE 5.590
- Competitive Price
- Quality Assurance
- MOQ：100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Key Words: toyota 2jz connecting rod
- engine connecting rod for toyota
- 2jz toyota engine
- forged 4340 steel connecting rods for Toyota
- Toyota 2jzgte h beam connecting rods
Brand: Hurricane
Engine: Toyota Supra MK4 2JZGTE
Part Type: Connecting Rods
Center to Center Length: 142mm/5.590"
Big End Bore Diameter: 55mm/2.165"
Big End Width: 25.9mm/1.012"
Small End Bore Diameter: 22mm /0.866"
Small End Width: 25.9mm/1.012"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8 "
Approximate Connecting Rod Weight: 635g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 6pieces per set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
Hurricane "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Hurricane "H" Beam and the "other" inexpensive H-Beams on the market. Such as Shoulder design, Weight matched to +/- 1 grams, Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the "H" Beam and 3/8" ARP Custom Age 625+ for the H-Plus.
Engine: Toyota Supra MK4 2JZGTE
Part Type: Connecting Rods
Center to Center Length: 142mm/5.590"
Big End Bore Diameter: 55mm/2.165"
Big End Width: 25.9mm/1.012"
Small End Bore Diameter: 22mm /0.866"
Small End Width: 25.9mm/1.012"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8 "
Approximate Connecting Rod Weight: 635g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 6pieces per set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
2JZ - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Description
Hurricane "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Hurricane "H" Beam and the "other" inexpensive H-Beams on the market. Such as Shoulder design, Weight matched to +/- 1 grams, Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the "H" Beam and 3/8" ARP Custom Age 625+ for the H-Plus.
Hurricane Performance connecting rods for 2jz toyota engine

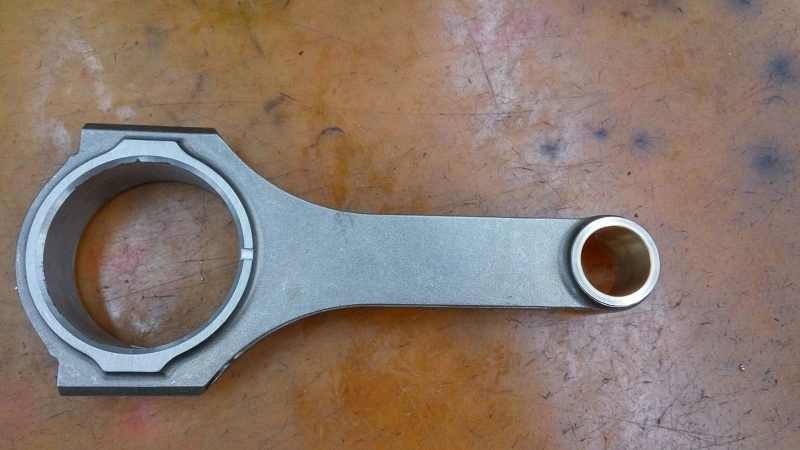

Note: Hurricane Toyota 2jzgte h beam connecting rods are designed for race engine application. drill a hole above the big end of the rod will reduce weight. big end design plus 3 x 45 ° shoulder design will add more strength. The advise horsepower could reach 1000HP.
For more Design choice, please view:

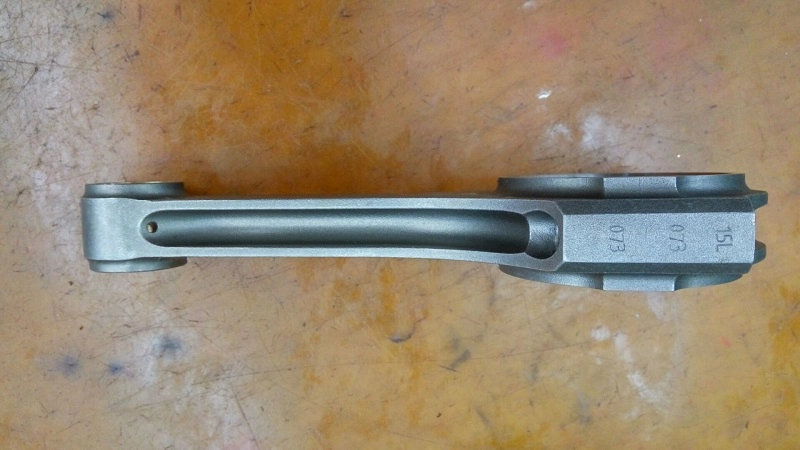

Note: toyota 2jz connecting rod Serial number are marked at shoulder part, specifically for re-uniting the rod and its cap after cutting.

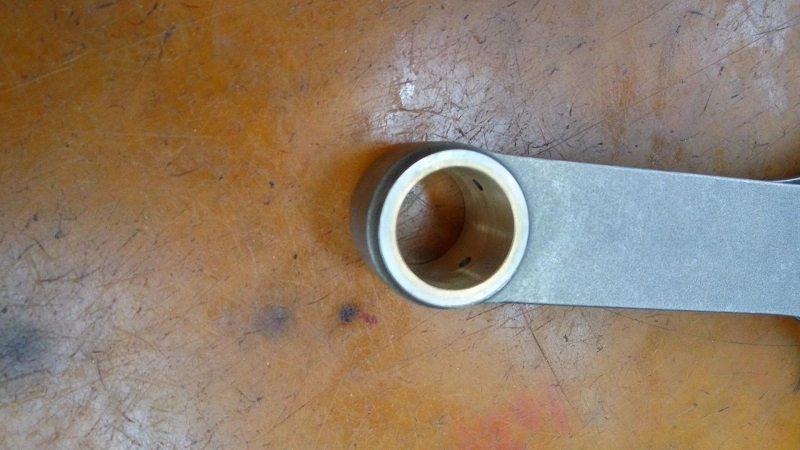

Note: Toyota 2jzgte h beam connecting rods Oil hole at Pin end providing lubrication.

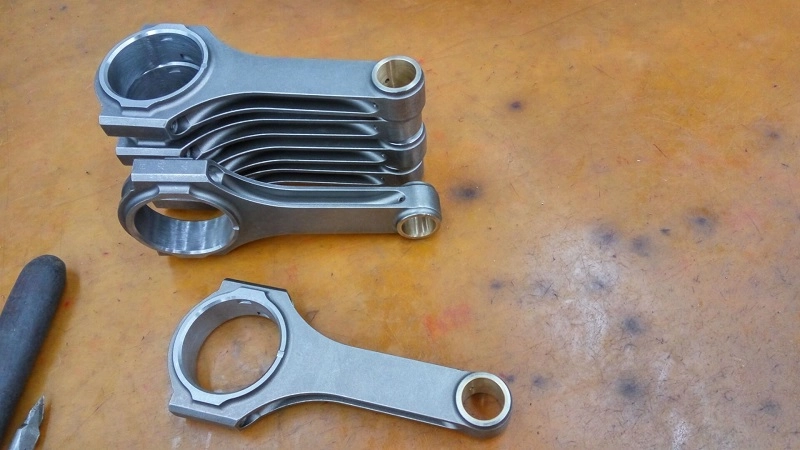

Note: Hurricane Toyota 2jz h beam conrods are packaged in set of 6, each set of 2jz conrods are balance weight to +/- 1g.
If you prefer I beam design for Toyota 2jz engine, please view: Toyota 2jzgte 4340 Forged Connecting Rods I-beam , Set of 6
Hurricane performance rods dimensions precision requirements are careful quality controlled! Please click for more information.

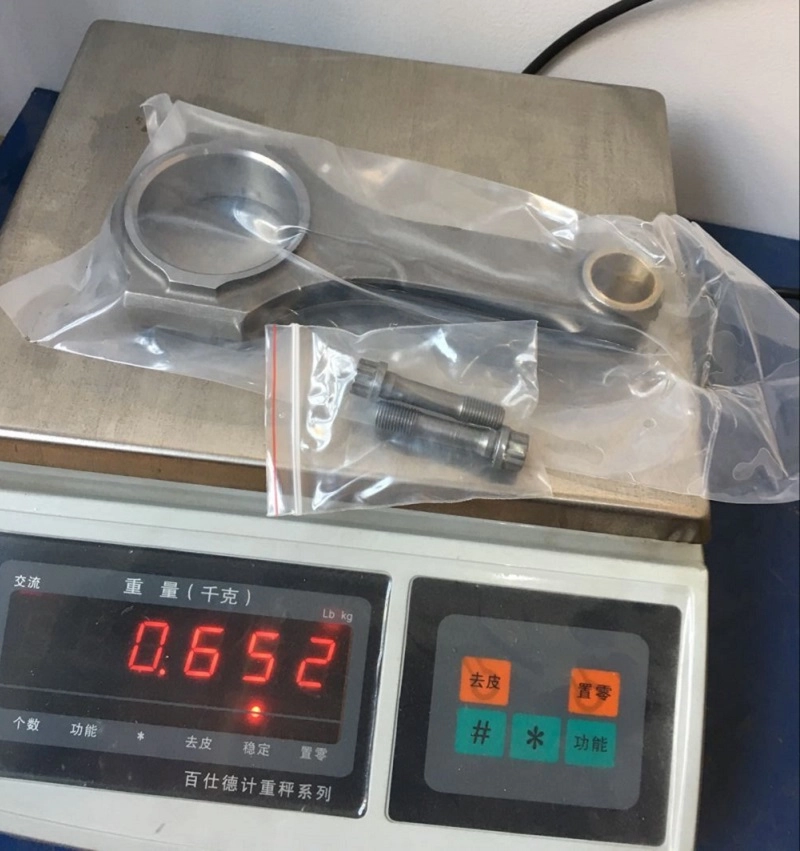

Hurricane Toyota 2jzgte H beam Connecting Rods Weight
A piece of our 2jz conrods with 2 piece hurricane race specs 3/8 conrod bolts weight is 625g. If you want to find a performance 2jz conrods for your high horsepower race engine, This one is your good choice. We would love to hear from you.
