Toyota 2jzgte 4340 Forged Connecting Rods I-beam , Set of 6

Toyota 2jzgte 4340 Forged Connecting Rods I-beam , Set of 6

  • Material: 4340 Steel
  • Bolts: 3/8",1.5"Length
  • Competitive Price
  • Quality Assurance
  • For High performance applications
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms: T/T, Paypal, Western Union
  • Keywords: Toyota 2jzgte 4340 Forged Connecting Rods
  •               I-Beam Connection Rod Set Toyota 2JZ-GTE
  •               Toyota 2jz I-beam conrods set of 6
  •               2JZGTE forged steel rods
  •               2JZ I-beam racing rods

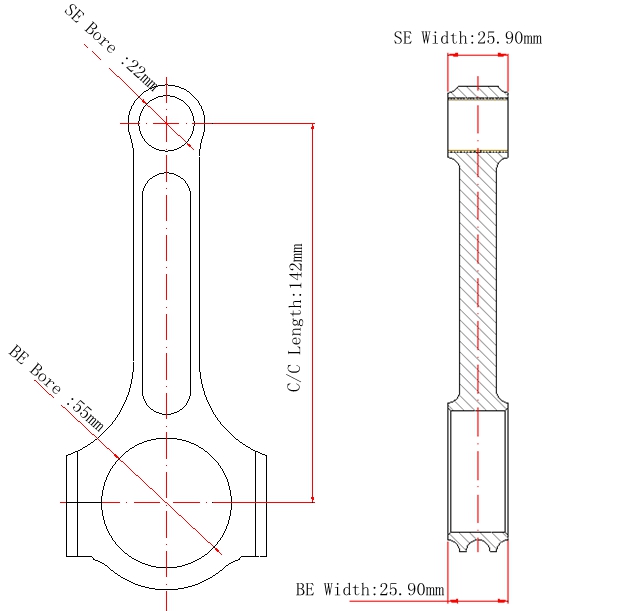

Toyota 2jzgte Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 142mm/5.590"
 Big End Bore Diameter: 55mm/2.165"
 Big End Width: 25.9mm/1.012"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 25.9mm/1.012"
 Beam Style: I-beam

Toyota 2jz I-beam Conrods Set Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  1000hp
 Quantity  Sold as 6 pieces perset
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes,available
 Custom design  Yes, accept

I-Beam Connection Rod Set Toyota 2JZ-GTE Description


Toyota 2JZGTE forged connecting rods made from high tensile 4340 steel material, precision-machined and fully inspected in Hurricane factory, each rod bronze wrist pin bushings installed for increased wear resistance, featured with round shoulder and one oil hole at their small ends to provide additional lubrication and cooling, straight I-beam construction to offer more strength for high horsepower 2jzgte applications; what's more, per rod 100% finished by advanced CNC machine to ensure bigest strength and durability, any way, they will be a good choice for your high performance Toyota 2jzgte racing vehicles. 

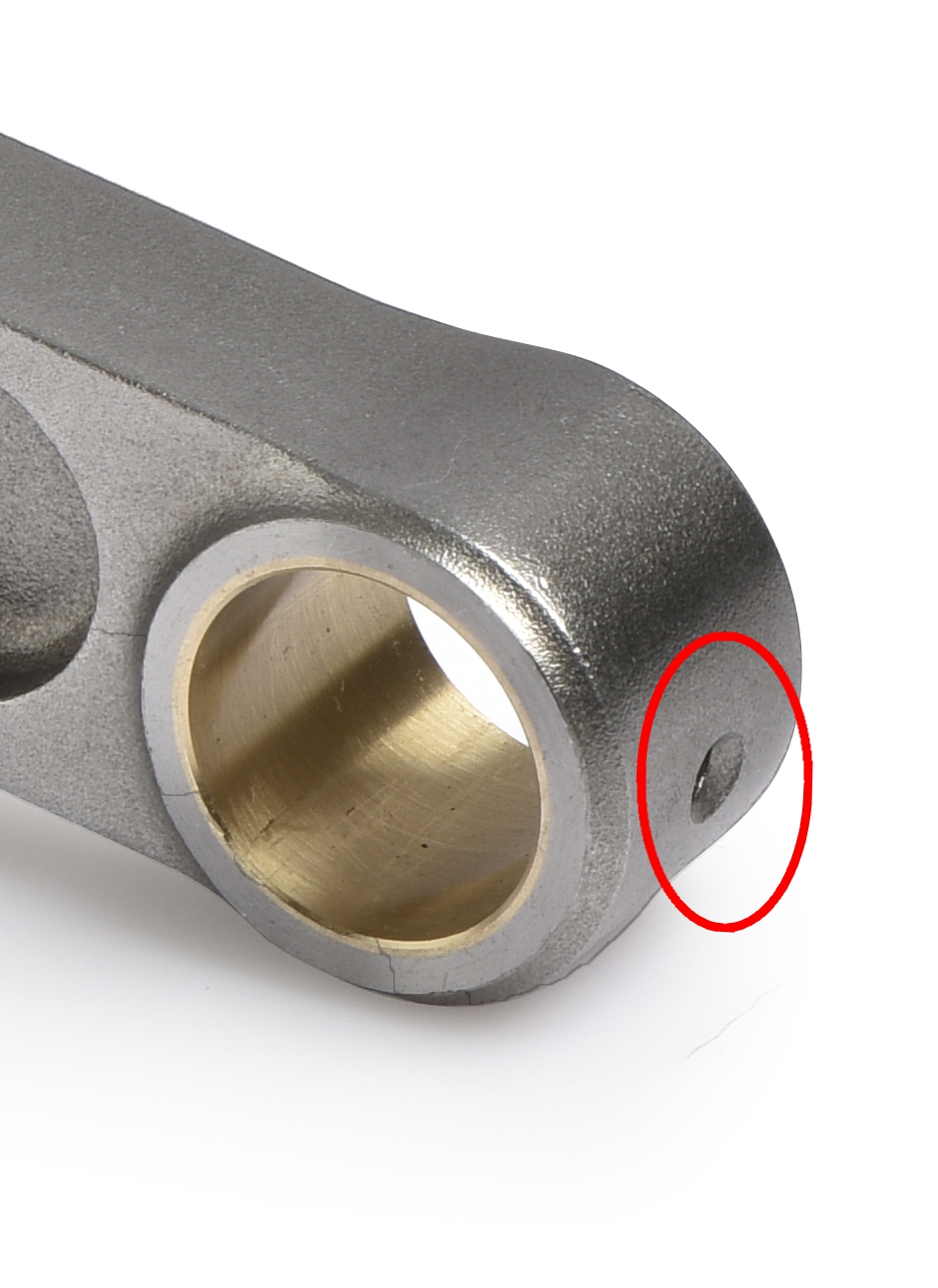

                         Round Shoulder                                                                      Oil Hole




Note : Various shoulder design is availbale, you are welcome to click here to look at more shoulder design details .

Hurricane2JZGTE forged steel connecting rods Applications:

 Make  Vehicle Model  Vehicle Group  Engine
 Toyota / Lexus  Supra MKIV  Supra TT MK4 93-98 JZA80
 Supra NT MK4 93-98 JZA80
SC300/Soarer 92-00 Z30
IS300 01-05 XE10
GS300/Aristo 91-97 S140
GS300/Aristo 98-05 S160
  2JZ-GE
 2JZ-GE VVTi
 2JZ-GTE
 2JZ-GTE VVTi

Any question for this product, please feel free tocontact us!

The Process Of Custom Conrods


Custom Rods are available in Hurricane factory, If we OEM your style of connecting Rod,  please follow the steps as below:

1) Hurricane received the detailed drawing or used sample, then we make quote detail
2) if you agree our quote, then we design drawing
3) each other confirm the drawing and deal details
4) all confirm finished, 30% deposit required, then we make sample for you to test if necessary.
5) balance payment with freight cost before shipping, then we arrange shipping by your forwarder or our forwarder.

If the detailed drawing or used sample is unavailable, you can fill in our online custom order form custom connecting rod order formtosend the main dimensions for us to check first.

ToyotaSupra Race Car


Note: Picture from Pinterest.
